Custom Combined Uncoiler-Straightener + Servo Feeder for Vietnam Automotive Client

As manufacturing capacity continues shifting to Southeast Asia, Vietnam has become a core production base for automotive stamping parts. Recently, YITUO Intelligent completed full delivery and commissioning of a customized coil feeding line for a local Vietnamese automotive component manufacturer, solving long-term workshop pain points of scattered equipment, limited floor space and unstable feeding precision.

Client Background & Core Requirements

The client specializes in automot ive structural stamping parts, matched with a 125-ton mechanical stamping press. They mainly process 0.8-3.5mm cold-rolled steel and galvanized steel coils. Before cooperation, the client adopted three separate machines: independent uncoiler, straightener and servo feeder.

Original production pain points:

1. The split feeding line occupied over 12 meters of workshop space, conflicting with compact workshop layout

2. Out-of-sync operation caused strip slack and tensile deformation, with feeding tolerance up to ±0.5mm

3. Manual coil threading took 20+ minutes per batch, dragging overall production efficiency

Besides production performance, the client put forward two personalized customized demands:

1. Uniform equipment color matching consistent with factory workshop: off-white main body + blue protective cover and electric cabinet

2. Stable feeding accuracy controlled within ±0.1mm to reduce defective stamping parts

YITUO Customized Solution

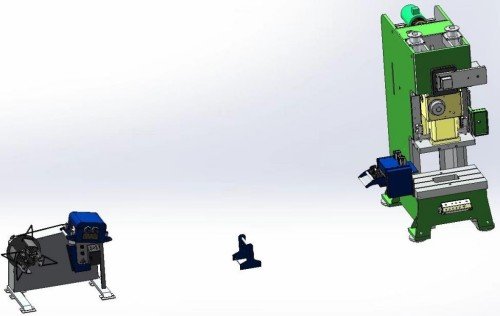

According to the client’s 125-ton press operating frequency, coil parameters and on-site space limitation, our technical team abandoned the traditional split layout and recommended a combined uncoiler-straightener integrated with NC servo feeder compact feeding line.

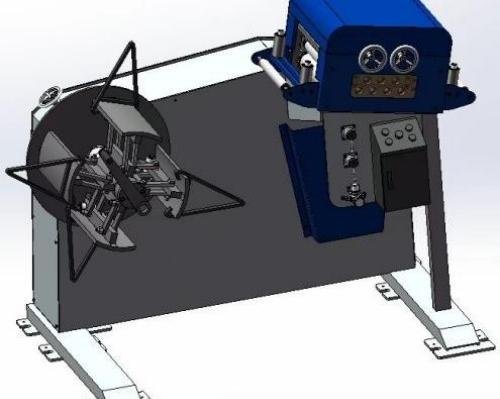

1. Compact Integrated Mechanical Structure

The combined uncoiler straightener integrates decoiling and leveling functions into one unit, cutting total line length to only 5 meters, saving nearly 60% workshop area. Equipped with 7 groups of GCr15 bearing steel leveling rollers with HRC60±2 surface hardness, it completely eliminates internal stress of cold-rolled and galvanized strips, ensuring flatness within 0.15mm/m². Matched with photoelectric loop sensing arms, it realizes automatic speed synchronization with the 125-ton stamping press without manual intervention.

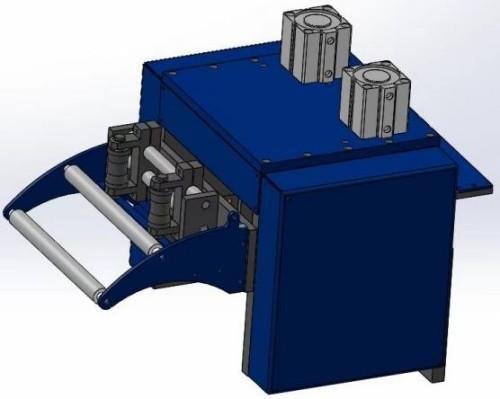

2. High-precision Servo Feeding Matching Stamping Rhythm

The supporting NC servo feeder adopts Yaskawa servo motor and closed-loop PLC control system. It supports electric feeding height adjustment to match different mold heights. The side gear transmission meets ISO 6 precision standards, keeping feeding accuracy steadily at ±0.1mm for long-duration mass stamping. The pneumatic roller releasing linkage works synchronously with the press cam to avoid strip tearing during emergency shutdown.

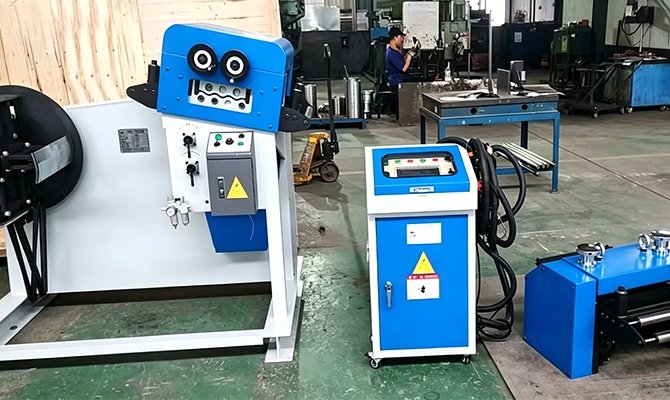

3. Custom Color Spraying Adapted to Local Environment

Considering Vietnam’s humid and dusty climate, we adopted electrostatic plastic spraying for all equipment surfaces. The main frame is painted customized off-white, while roller guards, sensor brackets and electric control boxes are painted blue for functional distinction. The finished coating features oil resistance, corrosion resistance and easy daily cleaning, perfectly fitting the client’s factory unified visual standard.

4. Overseas One-stop After-sales Service

We optimized internal voltage stabilizing modules adapting to unstable local grid voltage. A bilingual after-sales team offers 24/7 remote technical support for cross-border follow-up.

On-site Operation Results

- Coil threading time shortened from 20 mins to 5 mins, overall production capacity increased by 40%

- Stamping defective rate dropped from 3% to below 0.5%

- No extra on-site operator required, cutting labor input for coil feeding posts

- Custom color equipment standardized the whole stamping workshop appearance

Conclusion

This Vietnam project proves YITUO’s capability in personalized coil feeding customization. We not only provide standard coil feeding machines, but also support non-standard structure modification, appearance color matching. If you have demands for compact coil feeding line upgrading or personalized equipment customization, welcome to contact YITUO for tailored metal coil processing solutions.
