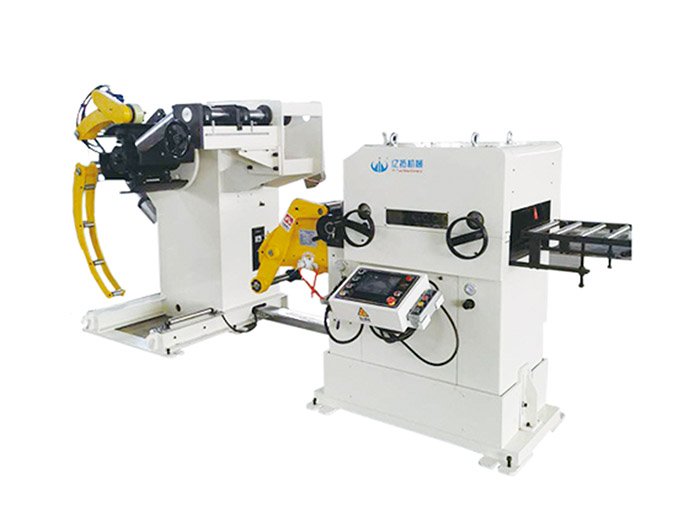

Compact Decoiler-Straightener-Feeder NCMF (0.3–3.2mm)

Product Features:

Applicable Material

Thickness: 0.3mm – 3.2 mm

Coil Width: 50mm –800 mm

Coil Weight: Max. 3 ton/ Max. 5 ton

Performance Speed

0-16 m/min

Inquire Now

Product Description

Space‑Saving Integrated Coil Processing Line

Unlike traditional loop‑style coil feeding setups, the compact NCMF series integrates uncoiling, straightening and feeding in one machine. It removes long material loops and greatly reduces occupied workshop space.

High‑Precision Straightening

The NCMF series uses premium GCr15 straightening rollers hardened to HRC 60. Paired with precise worm‑gear adjustment for upper rollers and a stable servo control system, it ensures outstanding straightening quality.

Safe & Reliable Operation

This all‑in‑one decoiler‑straightener‑feeder uses advanced automatic control and self‑diagnostic functions, providing full protection for operators during daily production.

Ultra‑Precise Feeding

With an electronic servo control system and pneumatic pilot release mechanism, the NCMF series delivers stable coil feeding with an accuracy of ±0.1 mm.

Product Data

Specification

	Model	NCMF-300	NCMF-400	NCMF-500	NCMF-600
Material thickness		0.3-3.2	0.3-3.2	0.3-3.2	0.3-3.2
Material width	mm	300	400	500	600
Coil Inner diameter	mm	ф450~Ф530	ф450~Ф530	ф450~Ф530	ф450~Ф530
Coilouter diameter	mm	Ф1400	Ф1400	Ф1400	Ф1400
Coil weight	kg	3000	3000	5000	5000
Decoiler power	HP	2.2	2.2	3.7	3.7
Straightening power	kw	2	2	3.5	3.5
Expansion style		Hydraulic expansion	Hydraulic expansion	Hydraulic expansion	Hydraulic expansion
Size	m	4.5x1.5x2.3	4.5x1.7x2.3	4.5x1.9x2.3	4.5x2.0x2.3
Weight	kg	~2200	~2400	~2800	~3000

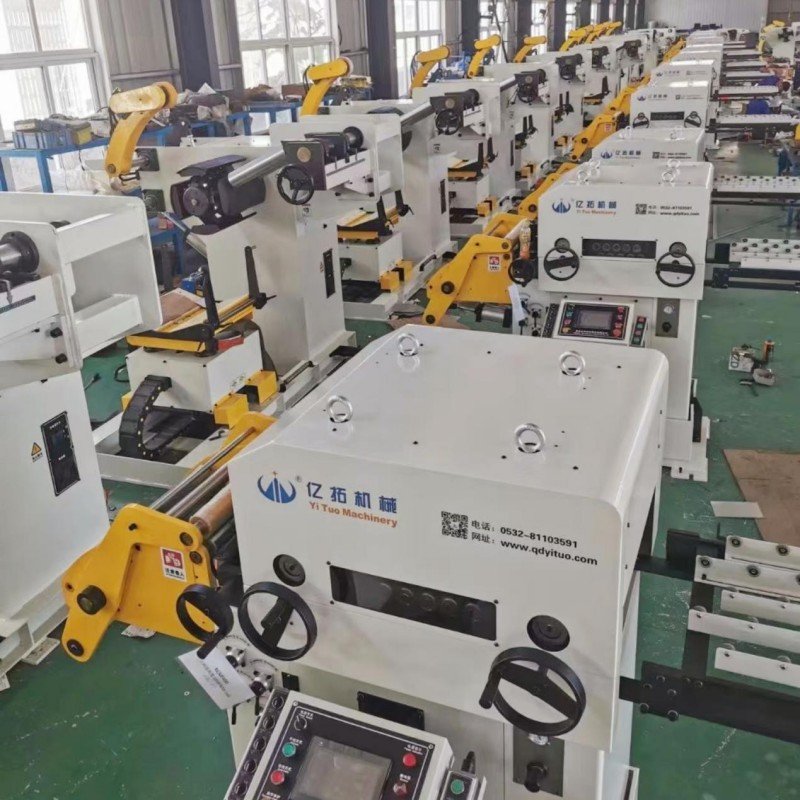

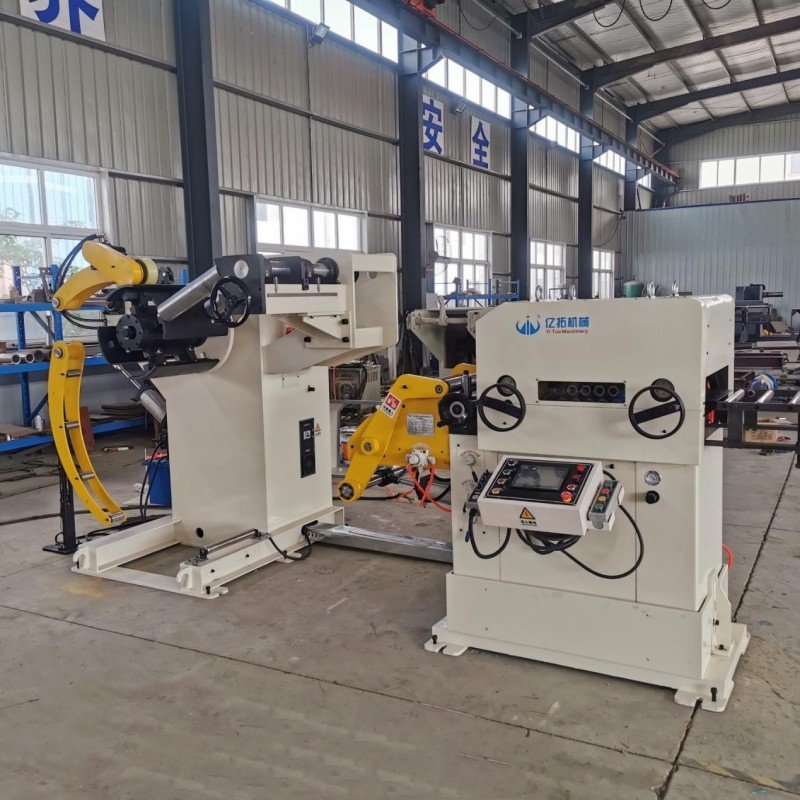

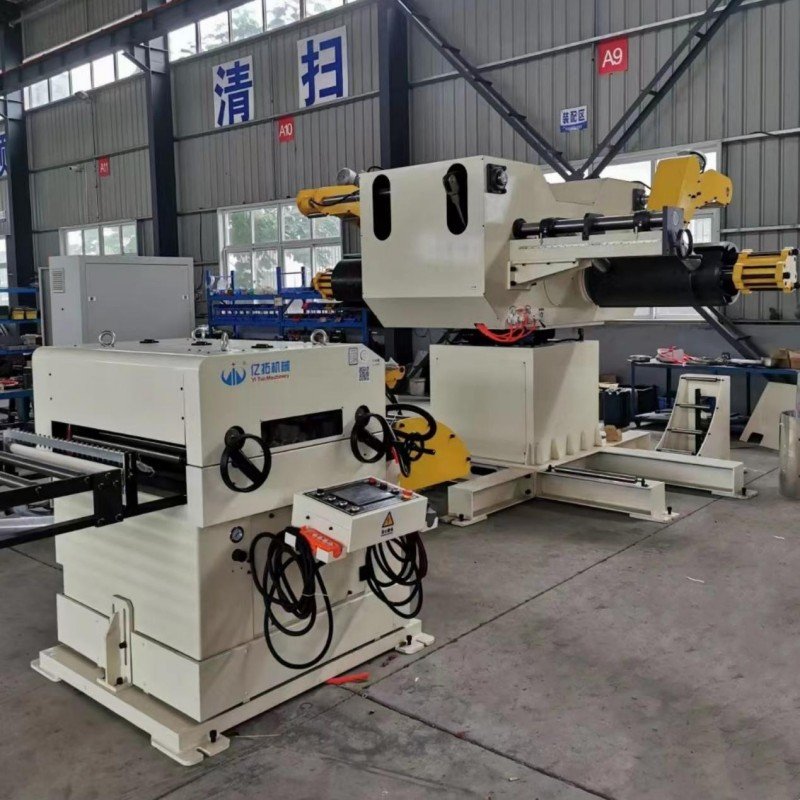

Customer Case
