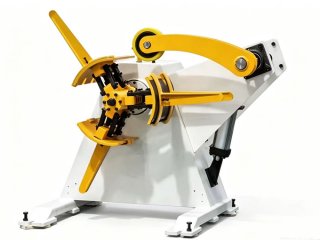

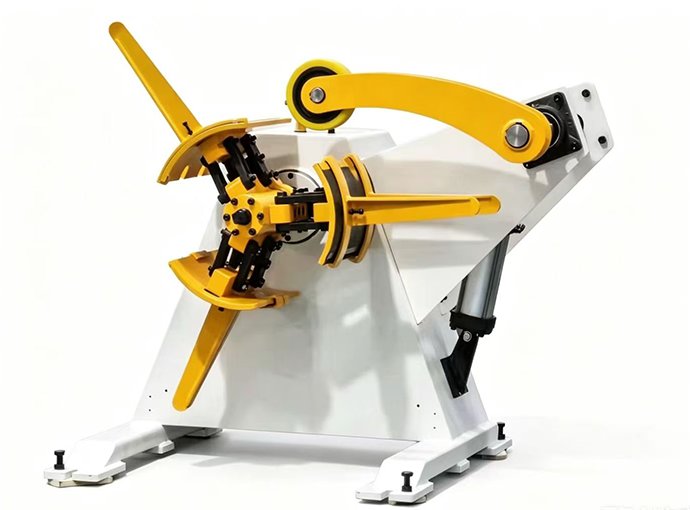

The double decoiler machine is a non-motorized operation. It has no motor and passively decoiling by the straighteners or feeders in the next workstation.
The brake system of this double decoiler machine is a band brake with the handwheel.
When the metal coil of one side is used up, it has a footplate to switch the decoiler side for quick coil change.
The coil locating device is a group of “A” type metal frames, with four or eight pieces.
HE-machine offers different specification customization for the double decoiler machine, such as the loading weight, inner and outer diameter, etc. Please contact us for more details.
Model | DBMT-150 | DBMT-200 | DBMT-300 | DBMT-400 | |
Max.Material width | mm | 150 | 200 | 300 | 400 |
Max.load | kg | 500 | 1000 | 1500 | 1500 |
Coil inner diaeter | mm | Ф450~530 | Ф450~530 | Ф450~530 | Ф450~530 |
Max.Coil diaeter | mm | Ф1200 | Ф1200 | Ф1200 | Ф1200 |
Spindle Expansion | Manual Expansion | Manual Expansion | Manual Expansion | Manual Expansion | |
∗ All the models support customized specifications, please contact our salesperson for more details.
