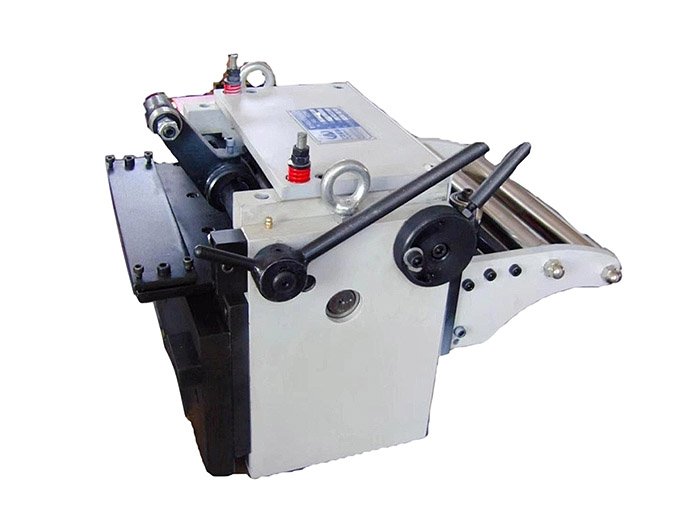

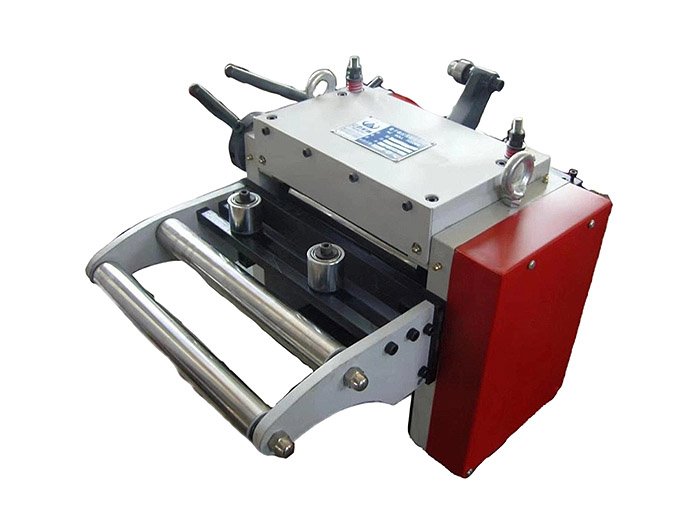

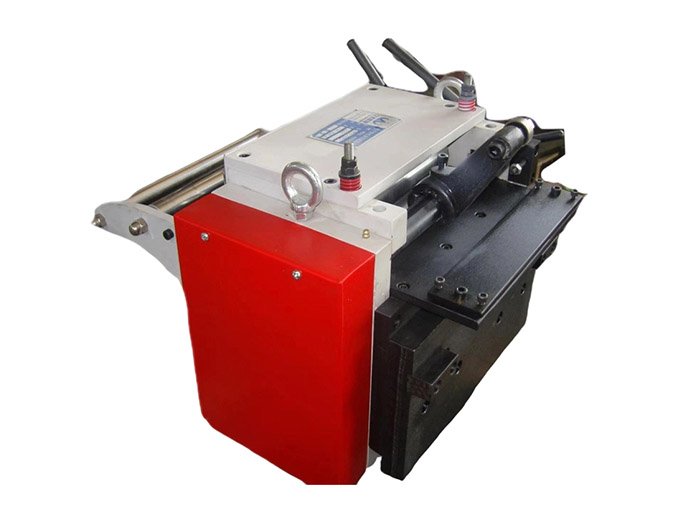

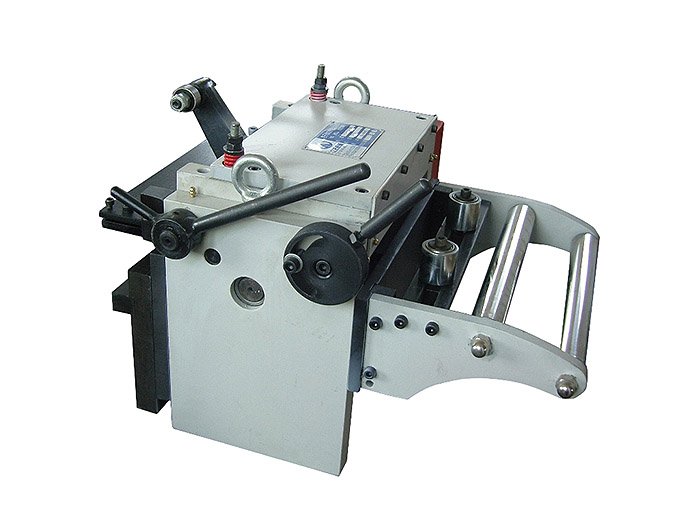

JNC Roller Servo Feeder

Product Features:

This JNC is a press feeder driven by a servo motor and employing a mechanical release system.

Applicable Materials:

·Material Thickness: 0.2 mm – 2.2 mm

·Material Width: < 500 mm

Feed Speed:

·Maximum Speed: 20 m/min

Inquire Now

Product Description

Stable and Reliable Feeding for Short Lengths.

This servo roller feeder is equipped with a mechanical release mechanism, ensuring stable and outstanding operating performance. The mechanical release response speed is superior to that of pneumatic release, enabling precise feeding even under high-speed stamping conditions, making it suitable for efficient continuous production.

Product Data

Specifications

Model	JNC-200	JNC-300	JNC-400	JNC-00
Coil Width	200 mm	300 mm	400 mm	500 mm
Strip Thickness	0.2-2.2 mm	0.2-2.2 mm	0.2-2.2 mm	0.2-2.2 mm
Feed Length	Max. 9999.99 mm	Max. 9999.99 mm	Max. 9999.99 mm	Max. 9999.99 mm
Speed	Max. 20m/min	Max. 20m/min	Max. 20m/min	Max. 20m/min
Line height	44-136 mm	44-136 mm	44-136 mm	44-136 mm
Release	Mechanical Type Releasing System	Mechanical Type Releasing System	Mechanical Type Releasing System	Mechanical Type Releasing System

Model		JNC-200	JNC-300	JNC-400	JNC-500
Slacking pneumatic pump		Mechanical	Mechanical	Mechanical	Mechanical
Feeding capacity	1.6	200	300	400	500
	2.0	175	300	335	500
	2.2	150	290	290	450

Applications:

Suitable for processing symmetrical alternating shapes, applicable to industries such as motor punching, circular saw blades, small kitchen and bathroom appliances, lighting products, automotive parts, and stainless steel products. Compatible with a variety of materials, primarily including steel, copper, aluminum, special alloys, and bimetals, maximizing material utilization.

Structure and Technical Specifications

Servo Drive System: Utilizes a high-performance brushless servo motor, offering rapid response and smooth operation, providing powerful performance for precise feeding.

High-Sensitivity Encoder: Equipped with a high-precision feedback device, ensuring accurate signal feedback and stable, reliable feeding control.

Synchronous Belt Drive Structure: Replaces traditional gear drives, effectively eliminating transmission backlash, reducing component wear, operating quietly without lubrication, and is safer and more environmentally friendly.

Integrated Motor Layout: The motor is embedded within the equipment body, effectively reducing the risk of damage from impacts during transportation and handling.

Hollow Feed Roller: Lightweight roller design with low rotational inertia improves equipment response speed and further ensures feeding accuracy.

High-Quality Feed Roller Material: The feed roller is made of imported bearing steel (HRC60°), treated with heat treatment, hard chrome plating, and precision grinding processes, resulting in excellent surface finish and a long service life.

High-Rigidity Body: Employs a robust, integrated structure, ensuring durability and stability even under heavy loads, easy maintenance, and undiminished accuracy over long-term use.

Precision Gear Assembly: The gears are made of 20CrMnTi material, carburized, quenched, and precision ground, resulting in high wear resistance and precise, reliable transmission.

High-End Electrical Control Configuration: Core electrical components are sourced from internationally renowned brands such as Siemens, Yaskawa, Mitsubishi, and Schneider Electric, ensuring efficient and stable equipment operation.

Flexible Adaptability and Integration: Easily integrates with stamping production lines, fixed-length cutting production lines, and automated feeding systems. Customized solutions are also supported to meet the specific needs of different scenarios.

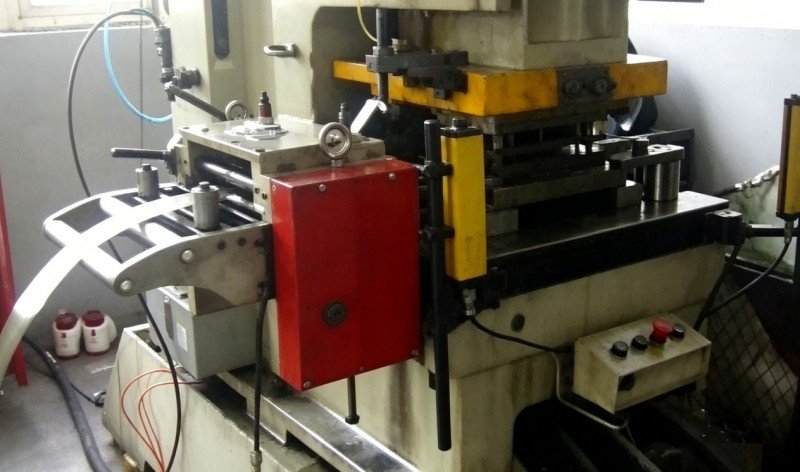

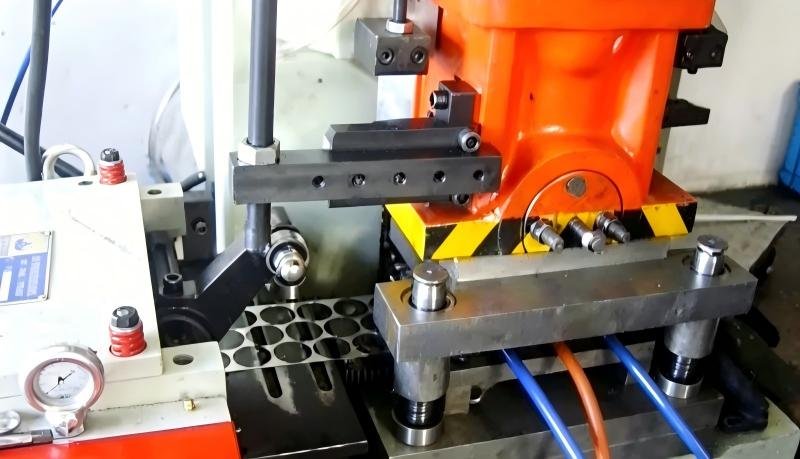

Client Cases
