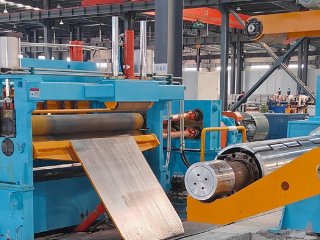

未标题-2_0000_图片2

未标题-2_0003_图片6

未标题-2_0004_图片5

未标题-2_0005_图片4

未标题-2_0006_图片3

未标题-2_0002_图片7

未标题-2_0001_图片1

未标题-2_0000_图片2

未标题-2_0003_图片6

未标题-2_0004_图片5

未标题-2_0005_图片4

未标题-2_0006_图片3

未标题-2_0002_图片7

未标题-2_0001_图片1

CNC Uncoiling Leveling Cross-Cutting/slitting Line

Cut-to-length Line (start-stop)

Product Features:

4-Hi/6-Hi leveling machines are available

Optional hydraulic/mechanical shears

Reliable strength design and high quality manufacturing ensure excellent machining accuracy

High quality flatness

High precision shearing control

Friendly man-machine interface, easy to operate

Inquire Now

Product Description

Product Overview

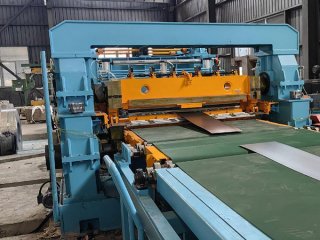

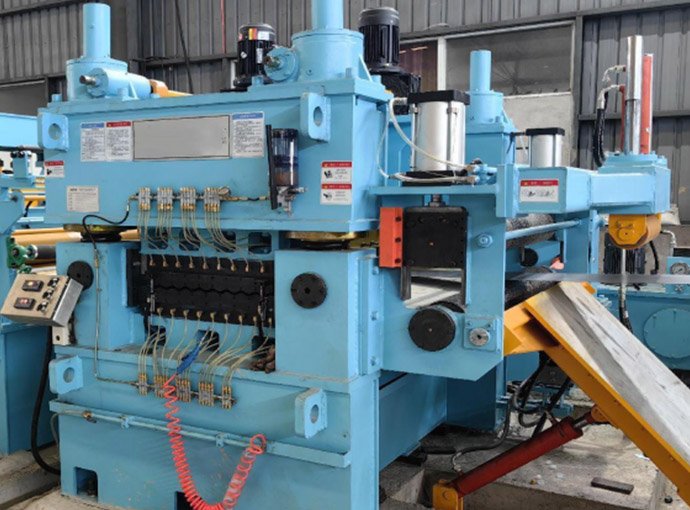

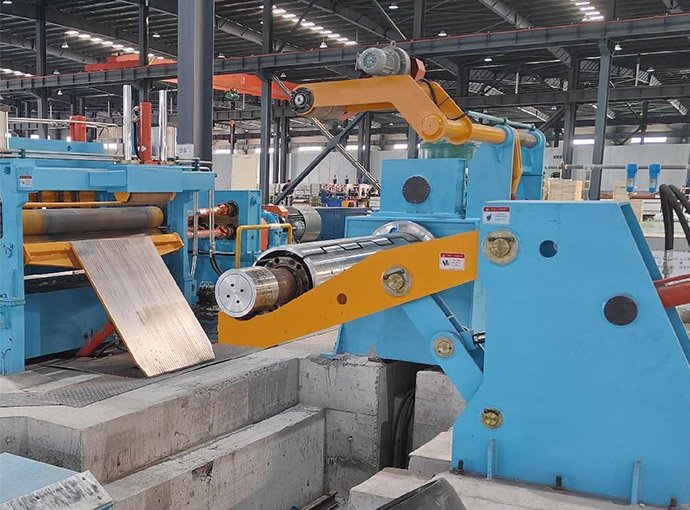

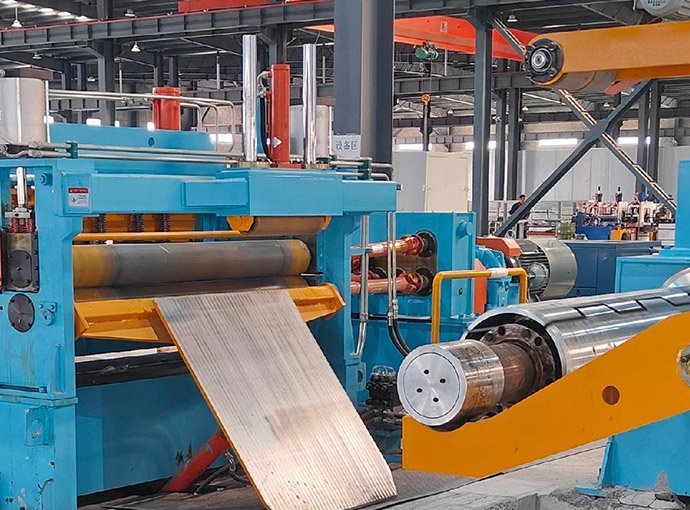

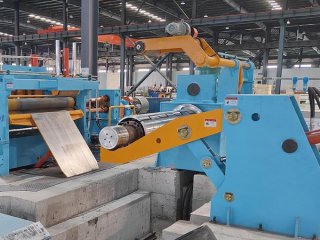

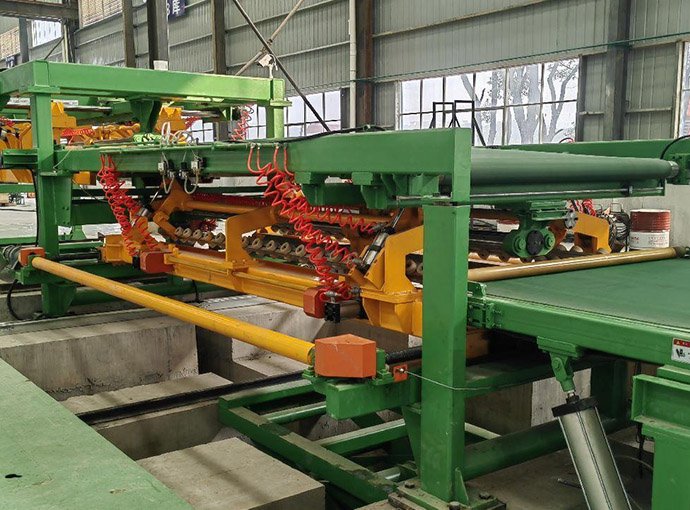

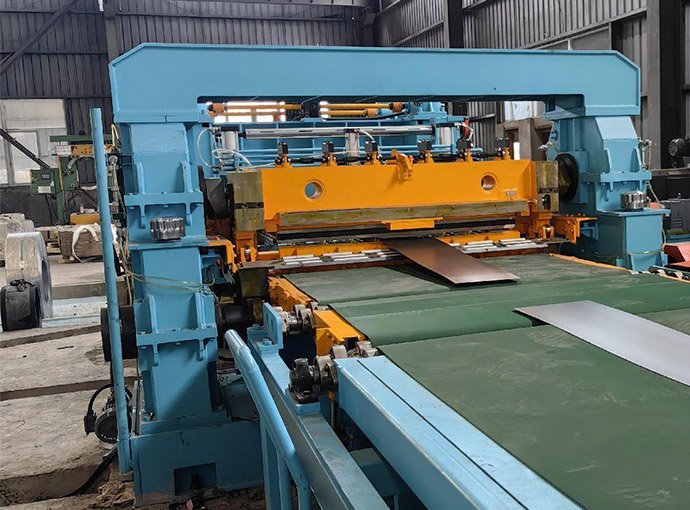

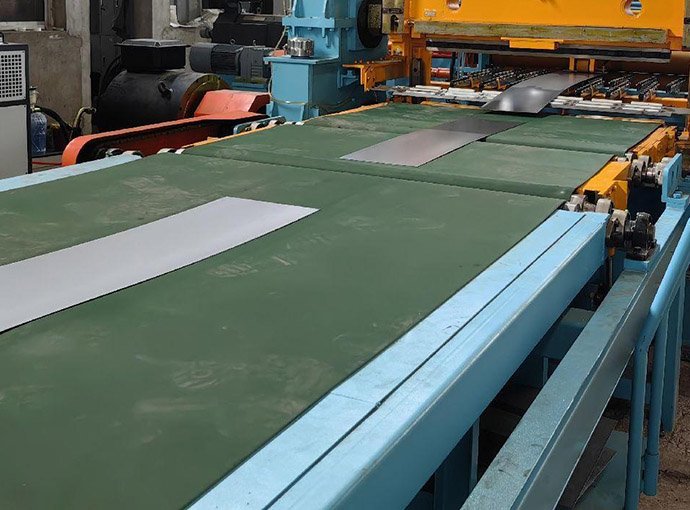

Through leveling machine, servo feeding machine and shearing machine, strip steel is cut into fixed length plate and piled.

Product Data

Technical Specifications

For Cold rolling Technical parameters

Parameter/ Model	UCL-2×800	UCL-3×800	UCL-2×1250	UCL-3×1650	UCL-3×1850	UCL-4×1850	UCL-3×2000
Processing of thickness,mm	0.3–2.0	0.4–3.0	0.3–2.0	0.4–3.0	0.4–3.0	0.4–3.0	0.4–3.0
Processing width,mm	100–800	100–800	300–1250	300–1650	300–1850	300–1850	300–2000
Cutting times	Max 60	Max 60	Max 50	Max 50	Max 50	Max 50	Max 50
Coil weight,ton	Max 10	Max 20	Max 20	Max 20	Max 25	Max 25	Max 25

For Hot rolling Technical parameters

Parameter/ Model	UCL-6×1650	UCL-6×1850	UCL-12×1850	UCL-12×2000	UCL-16×2000	UCL-16×2150	UCL-20×2500
Processing of thickness,mm	2.0–6.0	2.0–6.0	3.0–12.0	3.0–12.0	4.0–16.0	4.0–16.0	5.0–20.0
Processing width,mm	600–1650	600–1850	800–1850	800–2000	800–2000	800–2150	800–2500
Cutting times	Max 30	Max 30	Max 20	Max 20	Max 15	Max 15	Max 10
Coil weight,ton	Max 25	Max 25	Max 30	Max 35	Max 35	Max 40	Max 40

Note: Specifications can be customized according to customer requirements.
