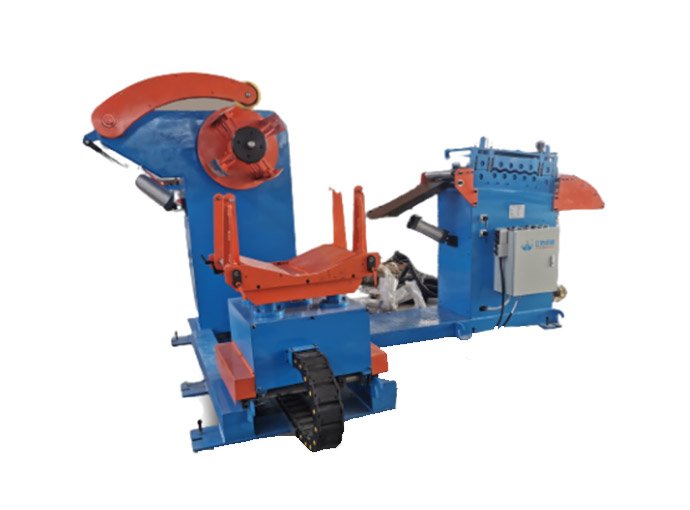

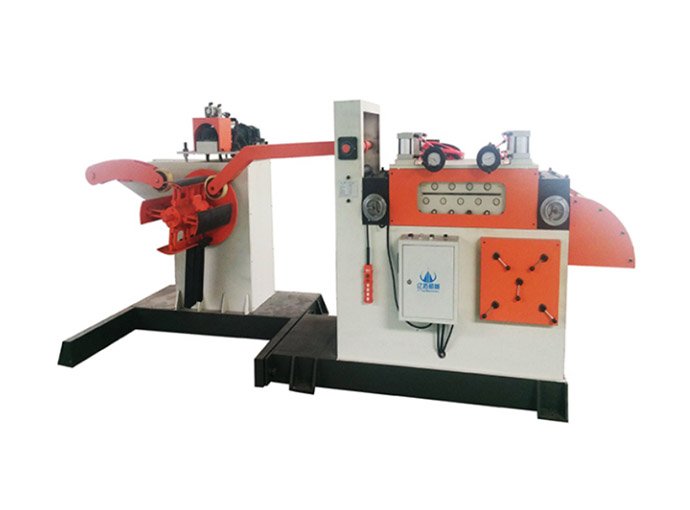

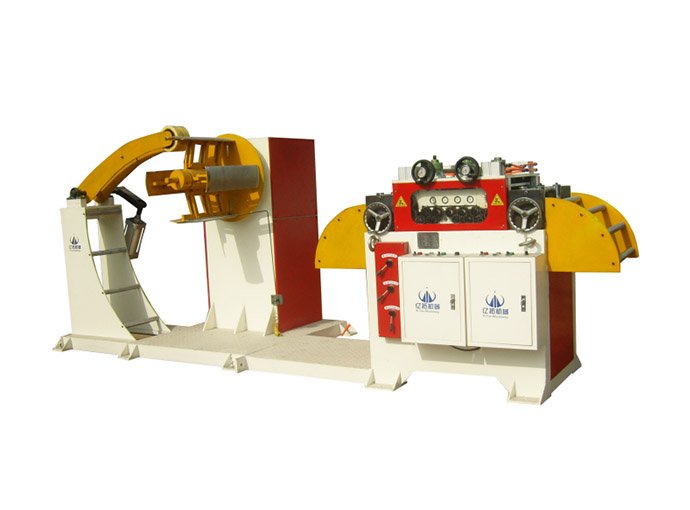

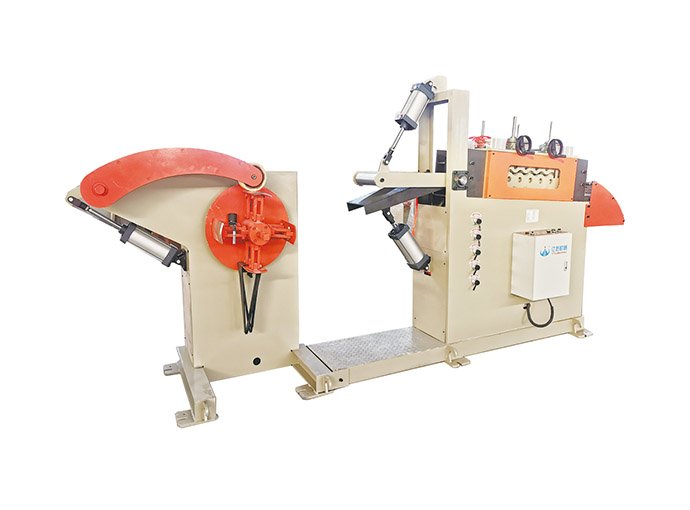

Decoiler-Straightener Combo SL (0.5-4.5mm/1.5-6.0mm)

2 IN 1 Uncoiler And Straightener Machine

Decoiler-Straightener Combo SL (0.5-4.5mm/1.5-6.0mm)

Product Features:

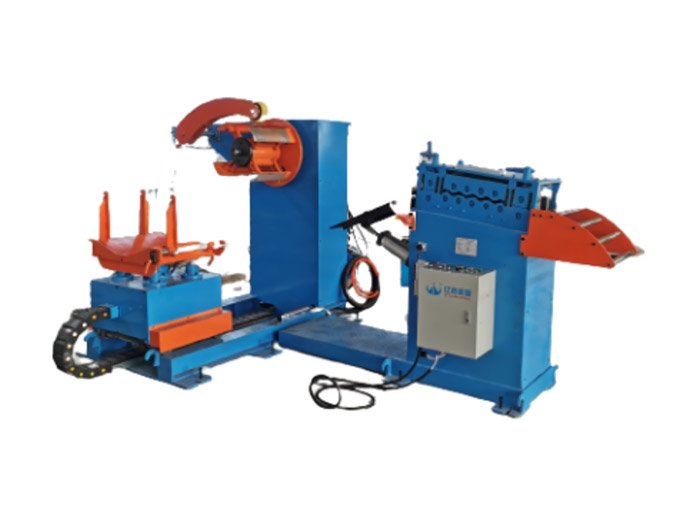

Designed as an integrated uncoiler-straightener combination machine, it enables easier and faster coil decoiling and flattening, with optimal floor space utilization.

uncoiler-leveller-machine

Applicable Material

Thickness: 0.5 mm-4.5mm/1.5-6.0mm

Coil Width: 300mm-800 mm

Coil Weight: <5ton

Feeding Speed

0-20m/min

Inquire Now

Product Description

Features Introduction

1. Uncoiler and straightener two in one style improves factory usablespace.

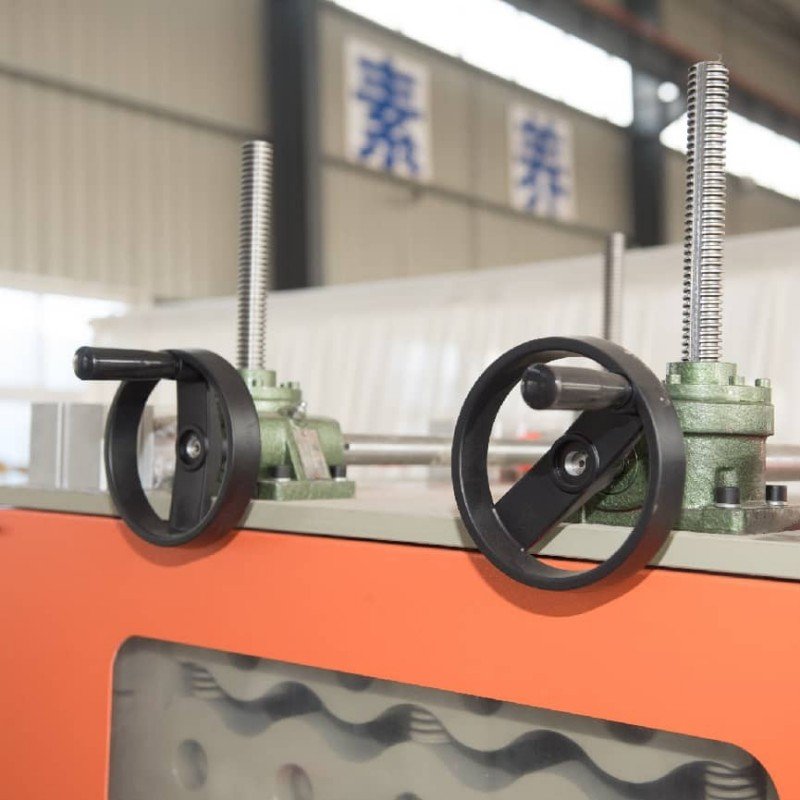

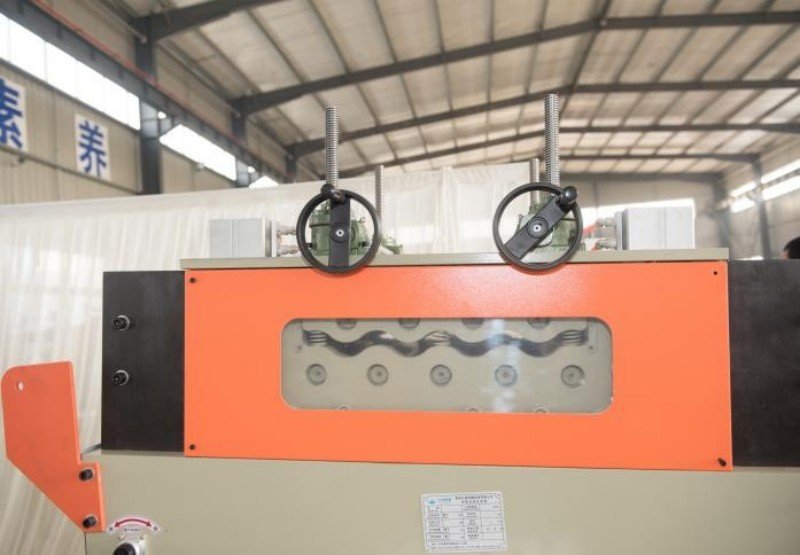

2. Straightening adopts balance adjusting equipment and suitable for processing higher prscision products.

3. Roller:adopts solid bearing steel and hard chrome plating treatment.

Product Data

Specification

Model	(mm) Coil width	(kg) Coil weight	(mm) Coil thickness	(mm) Coil Inter Diameter	(mm) Coil Outer Diameter	(EA) Number of straightening wheels	（kw/4p) Motor	Expansion style
SL-300	300	2000	0.5-4.5	450-530	1200	Ф90x9	2.2	Manual/hycrauic

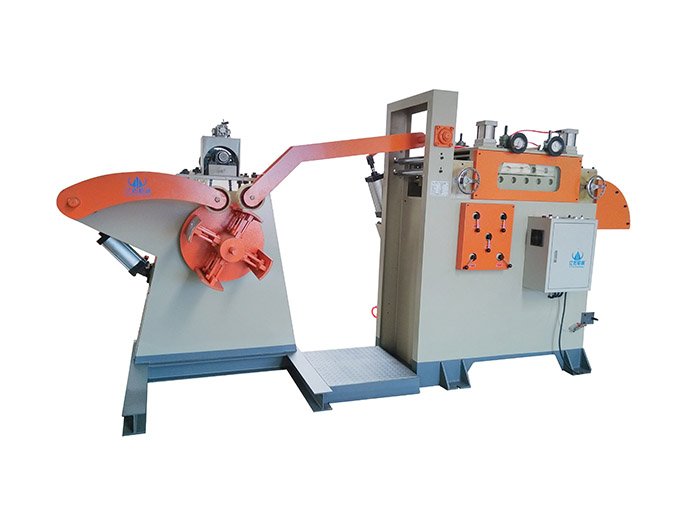

SL-400	400	3000	0.5-4.5	450-530	1200	Ф60x7	3.0	Manual/hycrauic
SL-500	500	3000	0.5-4.5	450-530	1200	Ф60x7	3.0	Manual/hycrauic
SL-600	600	3000	0.5-4.5	450-530	1200	Ф60x7	3.0	Manual/hycrauic
SL-700	700	4500	0.5-4.5	450-530	1200	Ф60x7	4.0	Manual/hycrauic
SL-800	800	5000	0.5-4.5	450-530	1200	Ф60x7	4.0	Manual/hycrauic
