Uncoiling, Slitting & Recoiling Production Line

CNC Uncoiling Leveling Cross-Cutting/slitting Line

Uncoiling, Slitting & Recoiling Production Line

Product Features:

Slitting machine with single or double arbor is available

Automatic feed is optional

Optional quick change separation shaft

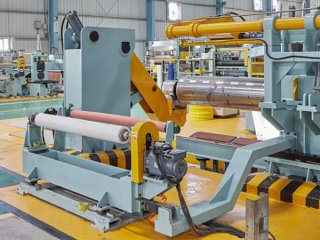

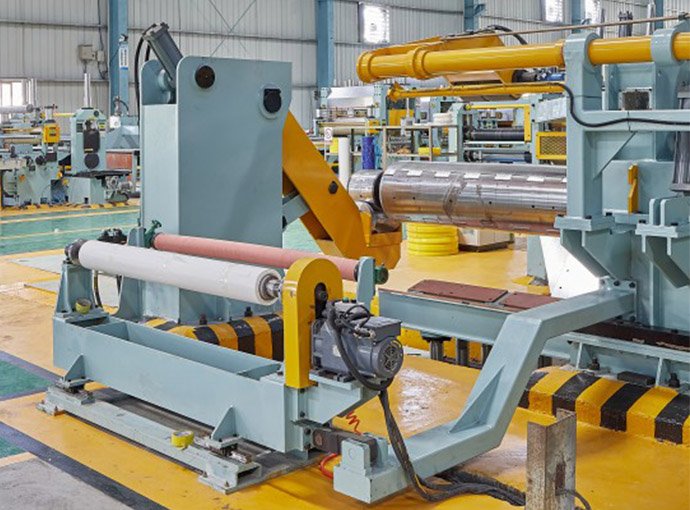

Optional paper collection machine

Automatic looper control

Inquire Now

Product Description

Product Overview

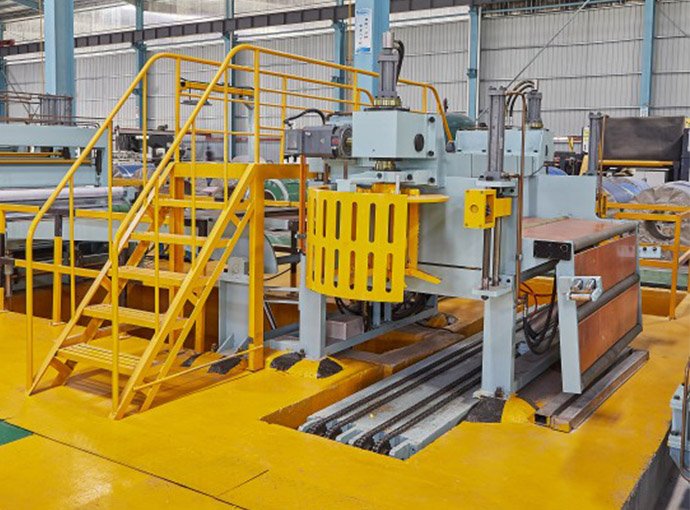

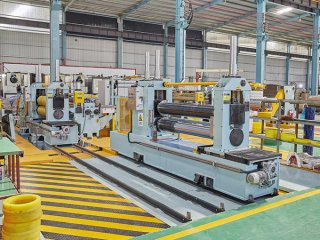

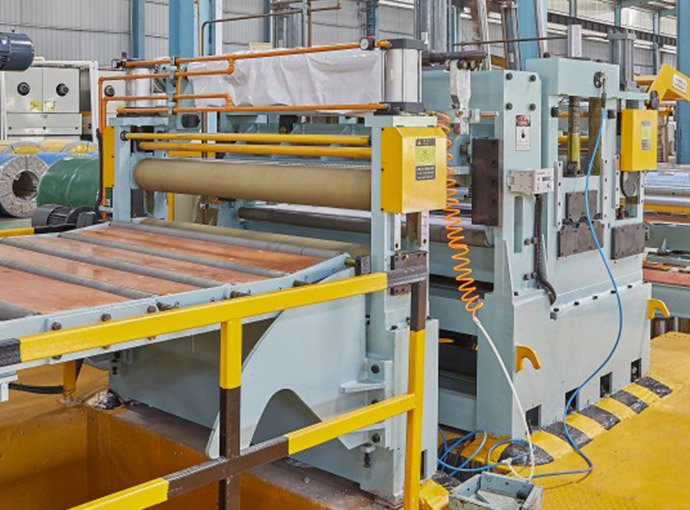

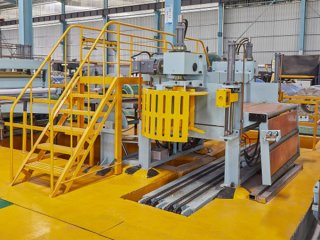

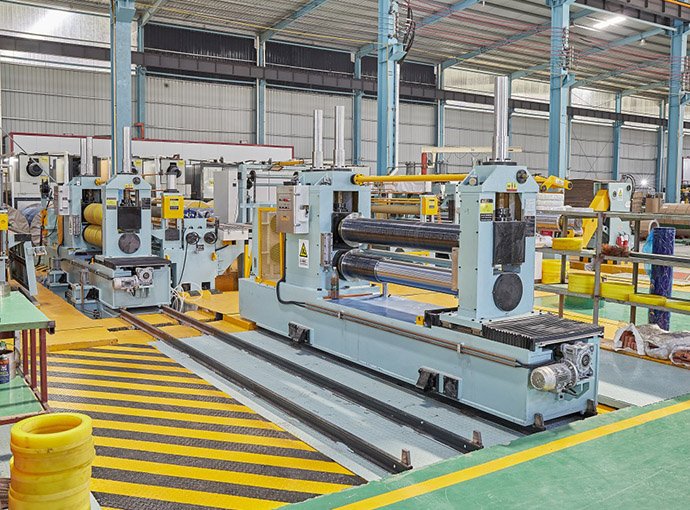

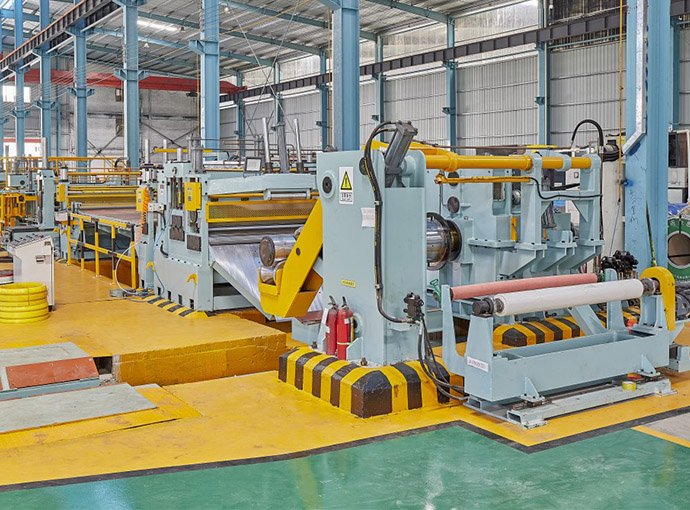

Through uncoiling, leveling, slitting machine, looper, pre-dividing, tension table, winding machine, the special equipment for cutting the coil plate into strip steel of different widths and winding.

Product Data

Technical Specifications

For Cold rolling Technical parameters

Parameter/ Model	USL-2×400	USL-2×1250	USL-3×1650	USL-3×1850	USL-3×2000	USL-4×2100
Processing Thickness,mm	0.2–2.0	0.2–2.0	0.3–3.0	0.3–3.0	0.3–3.0	0.3–4.0
Processing Width,mm	100–400	300–1250	300–1650	400–1850	400–2000	400–2100
Slitting Strips	30	40	50	50	50	50
Coil Weight,ton	Max 5	Max 15	Max 20	Max 25	Max 25	Max 25

For Hot rolling Technical parameters

Parameter/ Model	USL-6×1650	USL-6×1850	USL-12×1850	USL-12×2000	USL-16×2000	USL-16×2150	USL-20×2150
Processing Thickness,mm	2.0–6.0	2.0–6.0	3.0–12.0	3.0–12.0	4.0–16.0	4.0–16.0	5.0–20.0
Processing Width,mm	400–1650	400–1850	600–1850	600–2000	600–2000	600–2150	600–2150
Slitting Strips	12	12	10	10	8	8	6
Coil Weight,ton	Max 25	Max 25	Max 30	Max 35	Max 35	Max 40	Max 40

Note: Specifications can be customized according to customer requirements.
