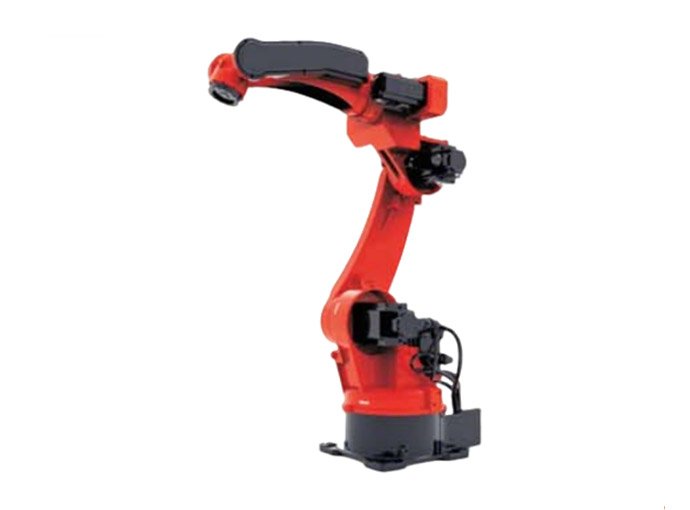

6-Axis Articulated Industrial Robot

Arm Robort

6-Axis Articulated Industrial Robot

Product Features:

Product Description

Product Overview

This 6-axis articulated industrial robot is a versatile, high-performance robotic arm designed to handle a wide range of automation tasks across industries. With 6 degrees of freedom, it offers exceptional flexibility to reach complex angles and positions, making it ideal for welding, material handling, assembly, grinding, spraying, and machine tending.

Common Applications

Welding & Fabrication: Arc welding, spot welding, and seam tracking in automotive, metalworking, and structural steel industries.

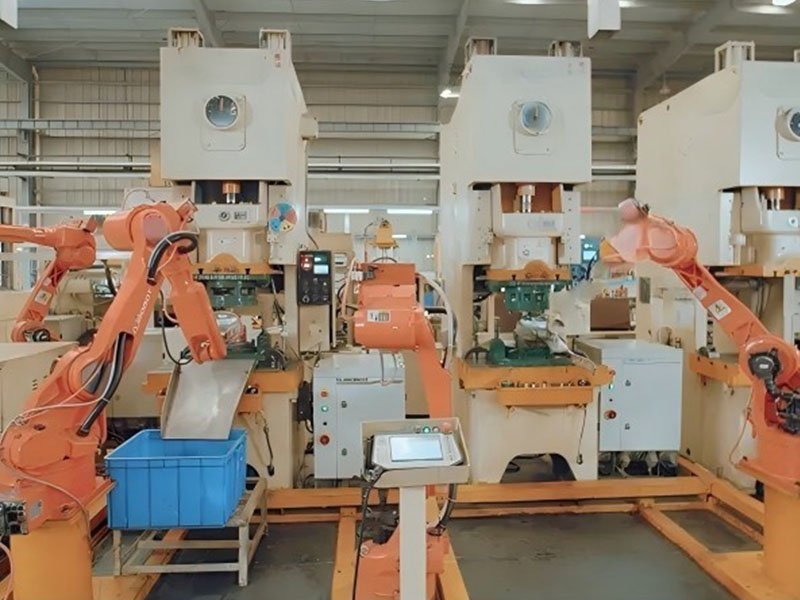

Material Handling & Palletizing: Loading/unloading machines, transferring parts, and stacking goods in manufacturing and logistics.

Assembly & Testing: Precision component assembly, screw tightening, and quality inspection in electronics, 3C, and appliance production.

Finishing & Processing: Grinding, deburring, polishing, and spraying for metal, plastic, and composite parts.

Automotive & Heavy Industry: Supporting stamping lines, powertrain assembly, and heavy component handling.

Product Data

Technical Specifications

Model			1010A-143	1020A-164
Name			Multi-purpose Robot
Type			6-axis Vertical Articulated Robot
Max. Payload			10 KG	20KG
Position Repeatability			±0.08 mm	±0.08 mm
Power Capacity			1.7 kVA	2.5 kVA
Robot Weight			170 KG	240KG
Motion Range	Base Axis	J1	±170°	±170°
		J2	+180° -40°	+164° / -54°
		J3	+170° -9°	+89° / -81°
	Arm Axis	J4	±150°	±170°
		J5	+22° -202°	±125°
		J6	±360°	±360°
Max. Speed	Base Axis	J1	138°/s	102°/s
		J2	100°/s	108°/s
		J3	136°/s	99°/s
	Arm Axis	J4	188°/s	177°/s
		J5	180°/s	174°/s
		J6	196°/s	305°/s
