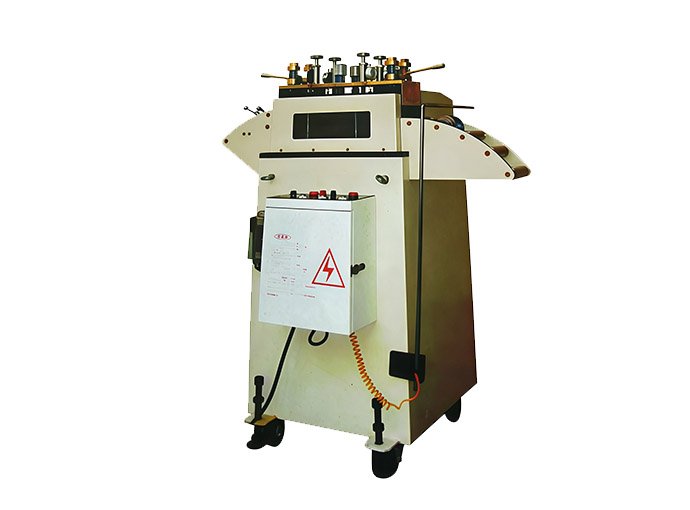

High Precision Sheet Metal Straightener SPS (0.2-1.5mm)

Straightener

High Precision Sheet Metal Straightener SPS (0.2-1.5mm)

Product Features:

The leveling rollers feature independent transmission design, equipped with an auxiliary roller to flexibly adjust the material bending direction as required.

Adopting cam-type roller gap adjustment instead of the conventional dial indicator mode, it saves extra calibration work and enables quick setting.

High-grade SUJ2 steel is adopted for all leveling rollers, heat-treated to hardness HRC60±2, ensuring outstanding wear resistance and long service life.

Equipped with Delta inverter for stable and stepless speed regulation during operation.

Inquire Now

Product Description

Applicable Material

Material Thickness: 0.2 mm – 1.5 mm

Max Coil Width: 20 mm – 600 mm

Material Type: Carbon steel, galvanized steel, secondary processed material, stainless steel, copper, aluminum and more

Material Form: Metal coil / metal sheet

model	SPL-100	SPL-200
Max.material width	100mm	200mm
Material thickness	0.08-0.3mm	0.08-0.3mm
Straightening speed	15m/min	15m/min
Motor	0.5HPx4P	1HPx4P
Straightening roller diameter	Ф12mm	Ф12mm
Roller quantity	11/12	11/12
Size	0.7x0.6x1.3m	0.7x0.6x1.3m
model	SPL-100	SPL-200
Max.material width	100mm	200mm
Material thickness	0.08-0.3mm	0.08-0.3mm
Straightening speed	15m/min	15m/min
Motor	0.5HPx4P	1HPx4P
Straightening roller diameter	Ф12mm	Ф12mm
Roller quantity	11/12	11/12
Size	0.7x0.6x1.3m	0.7x0.6x1.3m

Product Data

Specification

Model	SPS-150	SPS-200	SPS-300	SPS-400
Max.material width	150mm	200mm	300mm	400mm
Materila thickness	0.2~1.5mm	0.2~1.4mm	0.2~1.3mm	0.2~1.2mm
Straightening speed	16m/min	16m/min	16m/min	16m/min
Motor	1HPX4P	2HPX 4P	2HPX4P	3HPX 4P
Section roller diameter	Ф24mm	Ф24mm	Ф24mm	Ф24mm
Roller quantity	9/10 (up/down）	9/10 (up/down）	9/10 (up/down）	9/10 (up/down）
Back press roller diamete	Ф30mm	Ф30mm	Ф30mm	Ф30mm
Back press roller quantity	10/11 (up/down)	10/11 (up/down)	10/11 (up/down)	10/11 (up/down)
Guide roller	Ф48X2	Ф48X2	Ф48X2	Ф48X2
Size	1.1x0.8x1.4m	1.1x1.3x1.4m	1.1x1.4x1.4m	1.1x1.5x1.4m
