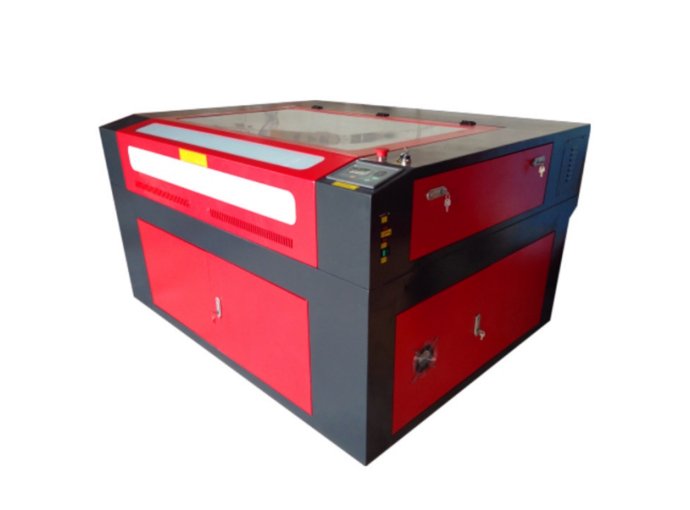

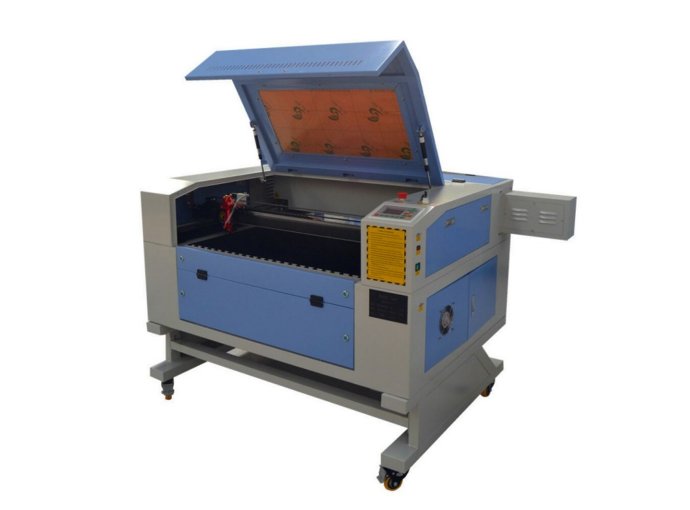

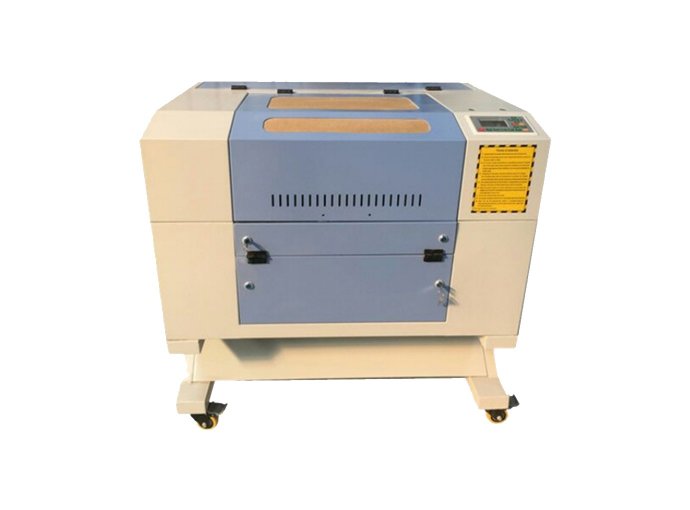

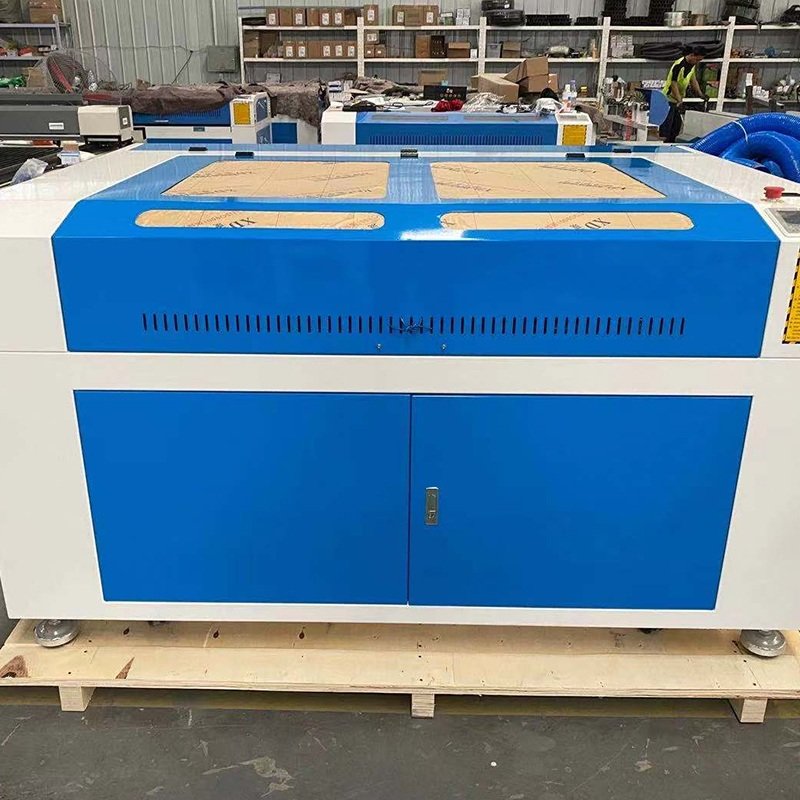

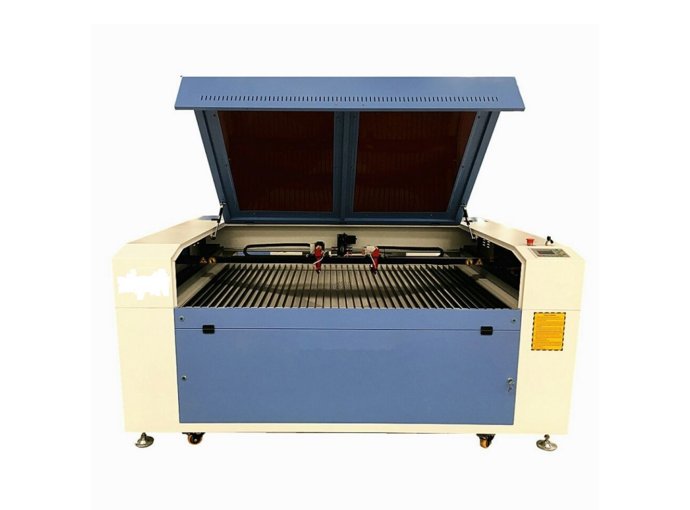

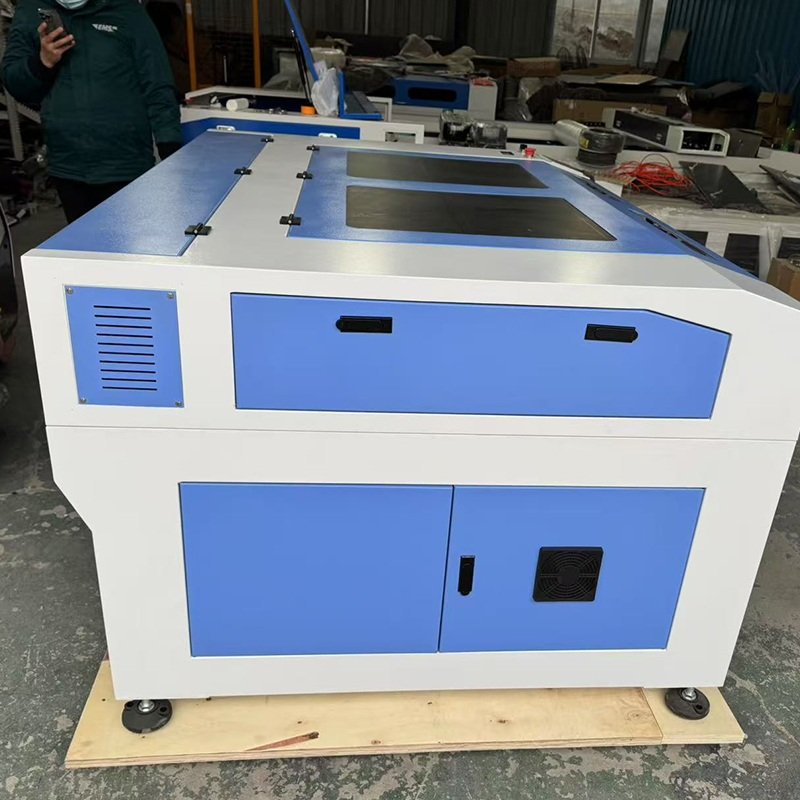

Laser Engraving Cutting Machine

Product Features:

Our laser engraving cutting machine delivers precise engraving, marking and cutting for non-metals and thin metals. Featuring premium laser tube and servo control, it ensures fine engraving, smooth cuts and stable operation. Suitable for small workshops and custom industrial production, widely used in personalized crafts, advertising and small-batch precision machining.

(0) Reviews

Inquire Now

Product Description

Cutting sample

Technical parameter

Model	LZ 1390 ( 4060/6090/1290/1310/1490/1610 option)
X,Y Working Area	1300x900mm etc
Laser power	60/80/100/130/150/200W
Laser type	CO2
Laser head NO.	One ( two heads option)
Reflector and focus mirrors	Imported

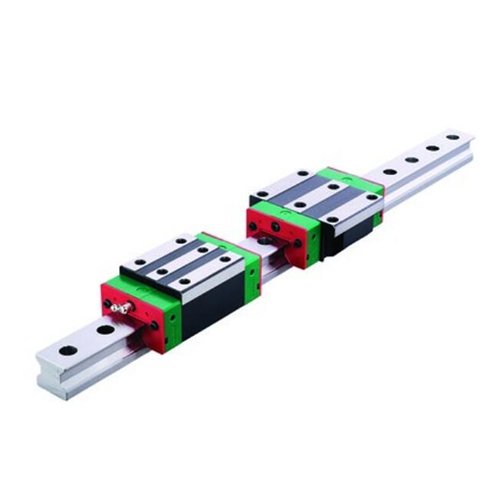

Linear rail	Taiwan HIWIN square guide rail

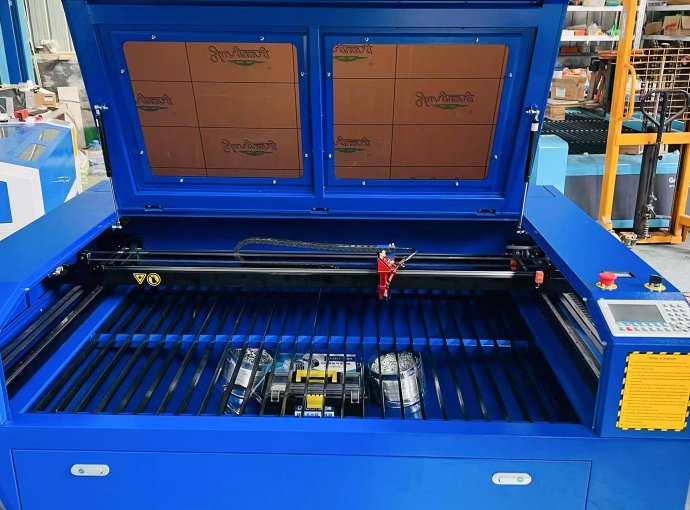

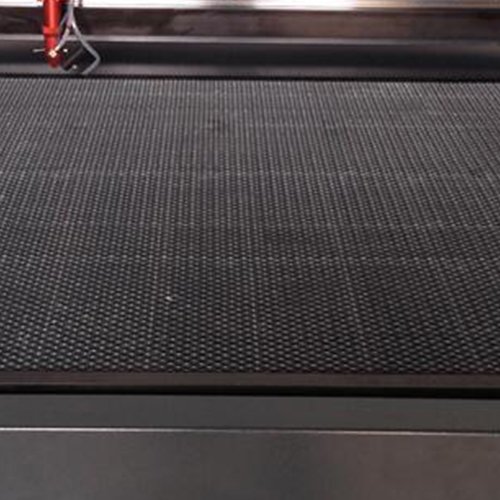

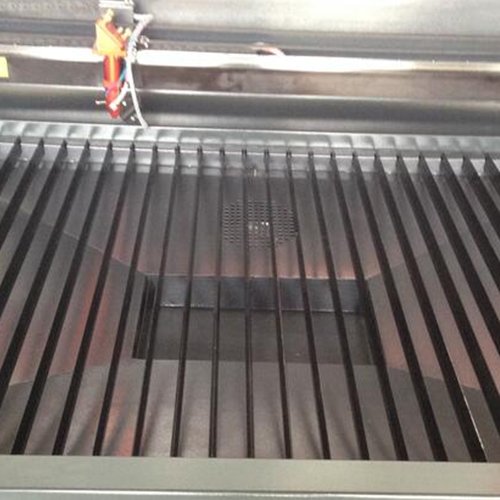

Table type	Knife and Honeycomb tables
Cooling system	Water chiller cw3000
Other accessories	Air pump, Exhausted system,
Engraving Speed	0-60000mm/min
Cutting speed	0-36000mm/min
Resetting position accuracy	±0. 01mm
Control system	RD system /Leetro System
Software	Laser work/Laser cut
Graphic format supported	BMP, PLT, DST, DXF, AI, JPG, etc.
Software supported	CorelDraw, PhotoShop, AutoCAD,etc.
Laser Output	1-100% Software Setting
Operating temperature	0 - 45℃
Operating humidity	5 - 95%

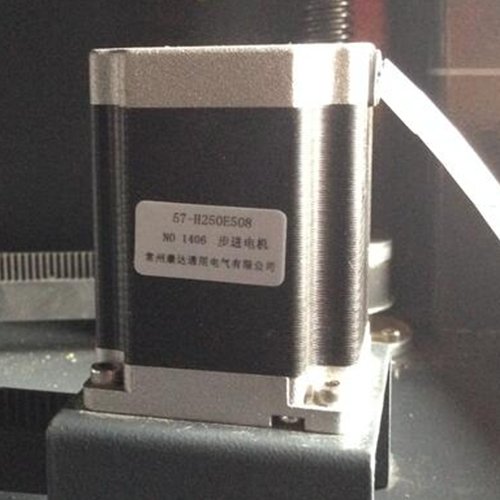

Working Mode	XY 3-phase Stepper motor
Cooling Mode	Water cooling and protect system
water supply cut-off protection	YES
Dichroic Cutting	Up to 256 colors
Gross power	<2200W
Minimum shaping character	English 1 x 1mm
Working Voltage	AC 110 - 220V ±10%, 50 - 60Hz
Command G Code,	uoo, mmg, *plt
Resolution rate	2000DPI

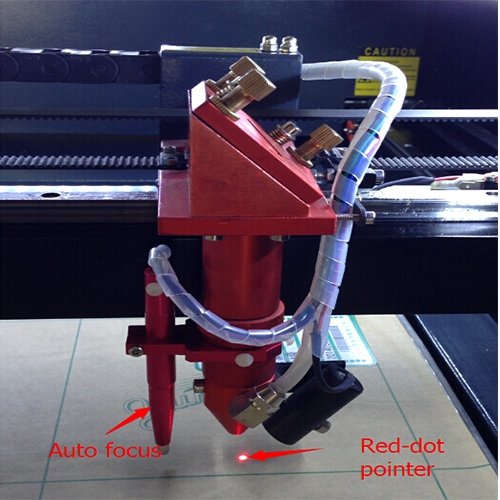

Focus	Auto focus system
Table	up and down table

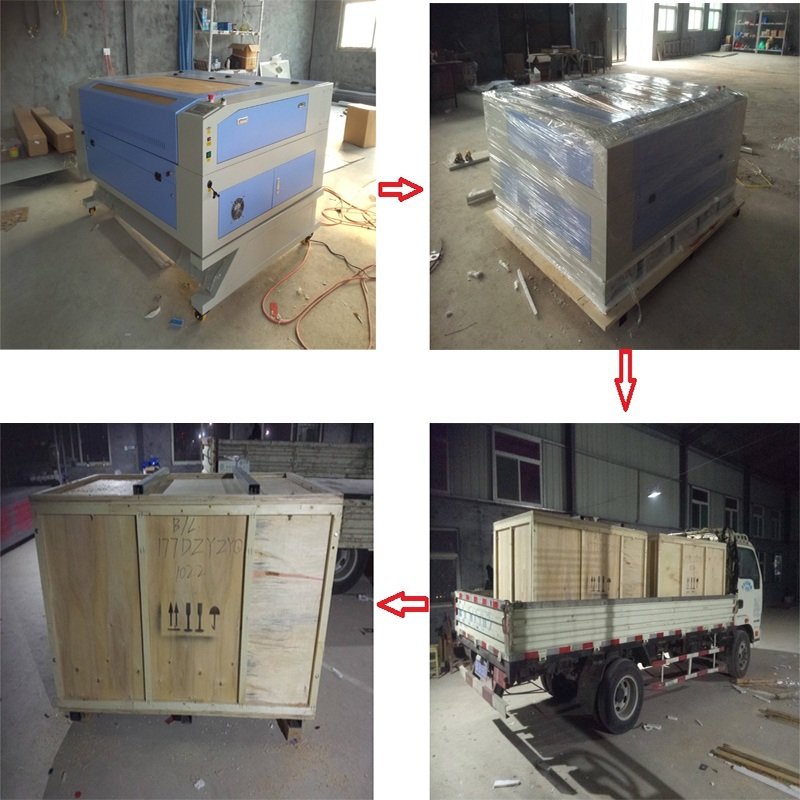

Packing	Plywood case
Machine Size	1670X1310X1050mm
Packing Size	1780X1420X1260mm
N.W	380KGS
G.W	480KGS

Application Industries

It is widely used in advertising production, craft gifts, leather processing, garment embroidery, toy manufacturing, architectural decoration, personalized custom engraving, stationery production, stone carving and other fields. It helps customers achieve high-value customized products and improve market competitiveness.

After-sales & Service Support

We provide complete one-stop service including machine debugging, English operation training, installation guidance, online technical support and long-term after-sales service. Customized working size, power configuration and personalized functions are available to meet different customer requirements.
